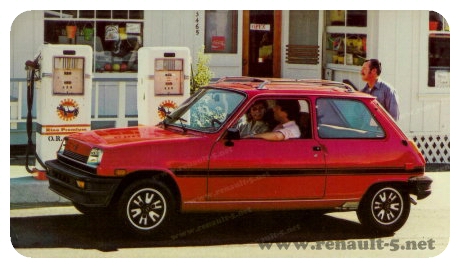

"Le Car" and Deluxe

(1980)


Technical Specifications

Engine

Displacement
Bore / Stroke
Compression ratio



4 cylinders in line. Water coold, front-mounted behind the Drive wheels

85.2cu. in. 1397 cc (1.4Liter)
2.874 in. / 3.031 in. (73 X 77 mm)
 8.8:1

Fuel requirement

USA/premium (94Avg.octane)

Catalyst / unleaded (87 Avg. octane)
Electrical system:

Rated voltage / 12v

Battery /45amp.hrs.

Ignition / New breakerless electronic
Gear: 4-speed manual / 1 reverse
Brakes:

Dual hydraulic, Girling, Self-adjusting brakes.

Bendix Vacuum power booster (GTL Deluxe only)
Front : discs
Rear : drums, load sensitive pressure limiting valve.
Mechanical parking breake
Suspension:

Front: Independent with unequal length control arms, torsion bars, double-acting hydraulic telescopic shock absorbers and stabilizer bar.

Rear: ndependent with trailing arms, torsion bars, double-acting hydraulic telescopic shock absorbers.
Steering: Turning circle (between curbs) : 32.0ft (9.74)
Steering turns, lock to lock : 3.75
Tires: 145x13 Steel belted Michelin XZX radials

Capacities:

Cargo volume 9.5cu (270dm3) / rear seat folded 31.5 cu (900dm3)

Fuel tank  / 10 gallons U.S. (38 liters)

Performance

Top speed 90 mph ( 144 km/h)

 Fuel consumption, EPA

40mpg - Highway

33 mpg - Combined



FEATURES

Le Car

Deluxe

Leatherette upholstery

Semi-styled wheels

Side window defoggers

Full undercoating

Fold down rear seat

Front door armrest with integral map pockets

Radio console and mini console

Vinyl floor covering

Passenger side visor vanity mirror

Bright drip rail and rocker panel moldings

Rectangular head-lamps

5 mph black fiberglass bumpers

Inside hood realese

Two courtesy lights

Ignition key reminder light

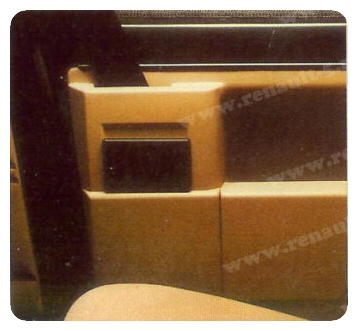

Passenger side rear seat ashtray

Le Car decal

Power front disc brakes

Extra quiet insulation package

Reclining bucket seats in leatherette

Day/Night mirror

Cigarette lighter

Swing-out rear quarter windows

Carpeting

Carpeted removable rear panel shelf

Soft feel steering wheel

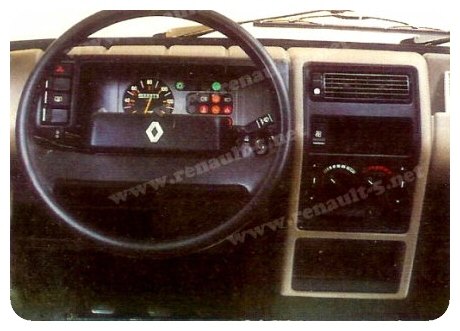

Soft instrument panel overlay

Leatherette gear shift boot

Passenger assist handles with coat hooks

Below dash parcel shelf

Ribbed grille moding

Rear window surround molding

Rally stripes

OPTIONS factory installed  (O)





Rear window defogger

(O)

Standard
Tinted glass

(O)

(O)

California emissions

(O)

(O)

Rear window wiper / washer

NA

(O)

Sun roof

NA

(O)

Metallic paints

NA

(O)

Air conditioning system

NA

(O)

Tan, blue, or russet cloth interior

NA

(O)

+ accessories
